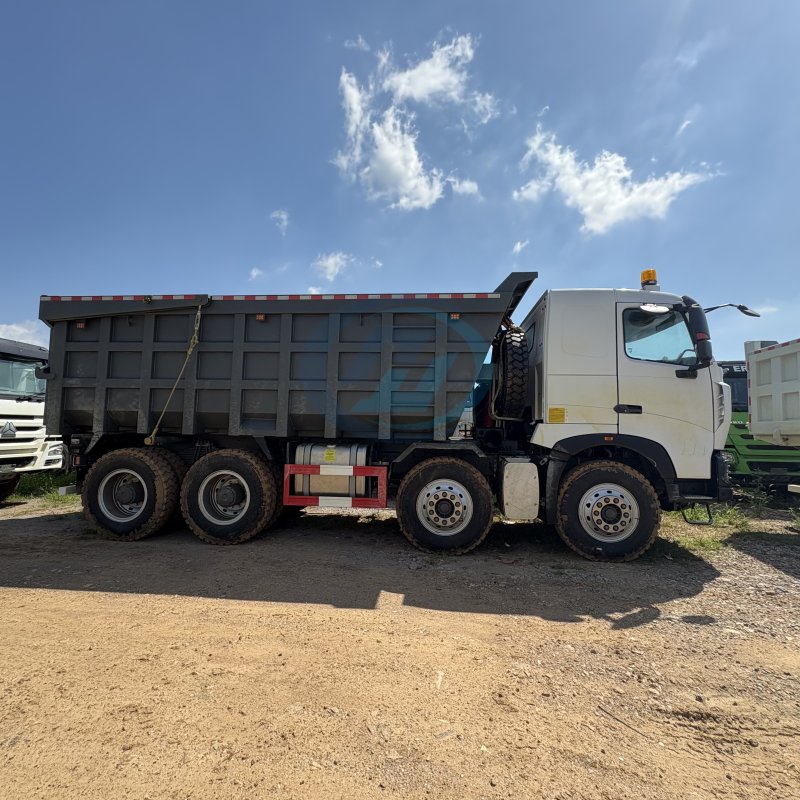

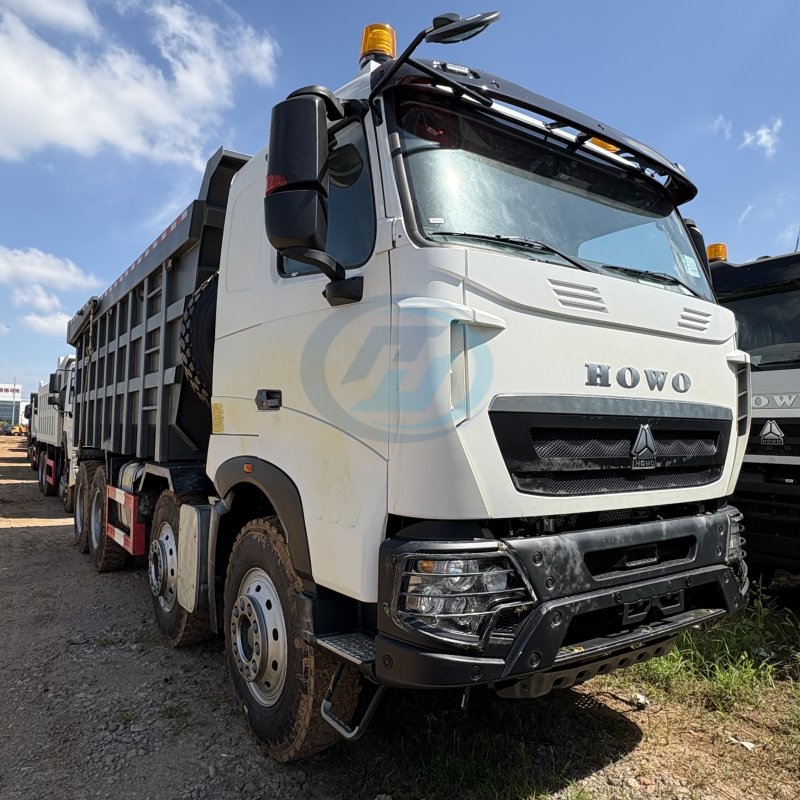

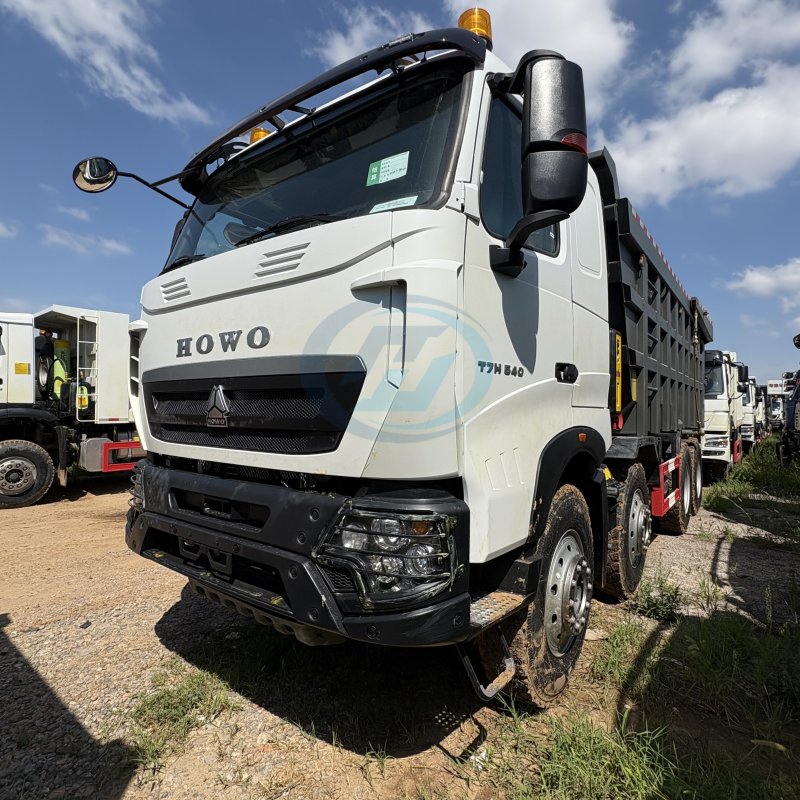

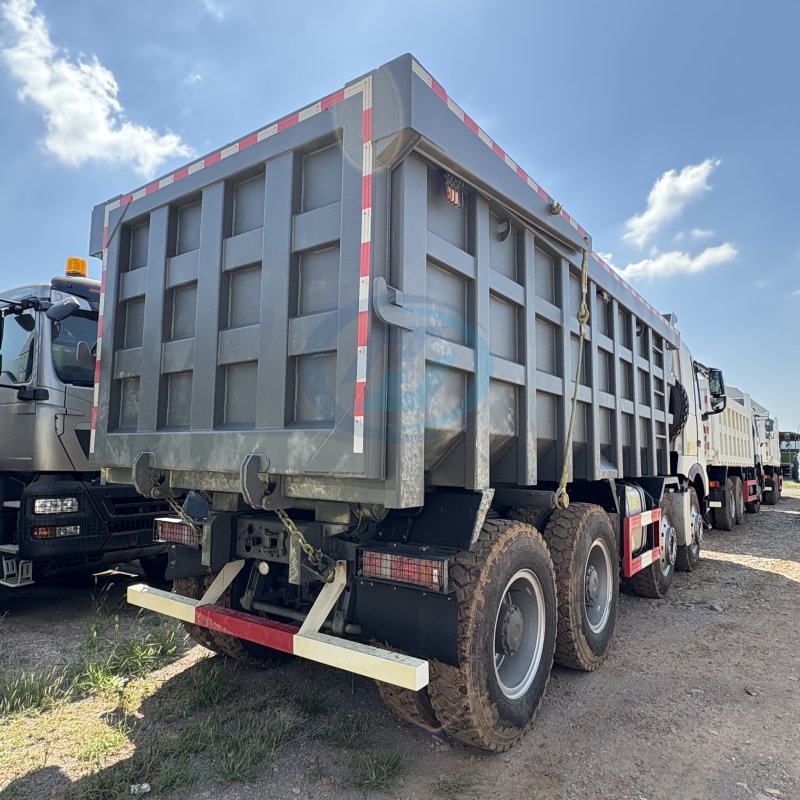

HOWO 8X4 T7H 540HP DUMP TRUCK

Dump Truck

HOWO 8X4 T7H 540HP DUMP TRUCK

Product Details

The SINOTRUK HOWO TX 8X4 12-wheel tri-axle diesel dump truck is widely used for transporting construction waste and ore. With its sturdy structure, large load capacity, and low fuel consumption, this dump truck is highly popular in Africa, Central Asia, Southeast Asia, and South America.

The cargo box volume ranges from 15CBM to 25CBM, and the maximum load capacity can reach 40 tons. We also offer customization options for cargo box dimensions and steel plate thickness to meet different project requirements.

Inquiry now Join Inquiry Car

PRODUCT DETAILS

Specification：

SINOTRUK HOWO TX 8X4 Lift Hand Driving Dump Truck
Model	ZZ331V434GB1R
Cabin	TX-F, long cabin, with air conditioner。Right hand driving
Engine	WP12S540E201,540HP, Euro II Emission standard Option： WP12.430E201(430HP)
Transmission	HW19710, manual, 10 F & 2 R
Front axle	9500kg loading capacity
Rear axle	2*16000kg loading capacity
Steering	Bosch brand, with Hydraulic assistance
Tire	315/80R22.5, 11 pcs (including one spare tire) Option:12.00R20,13R22.5
Fuel tank	300L/400L
Cargo box	630023001500mm, floor 8mm side plate 6mm, Hyva Front hydraulic lifting system .
Overall dimension	1050025503500 mm
Color	Option

Product Features

1.Strong Suspension & Chassis
All dump trucks are equipped with high-tensile steel leaf spring suspension and a reinforced double-layer chassis for durability and stability.

2.Optional Configurations
Multiple options available: driver’s air seat for comfort, engine oil pan and intercooler protection plate, top-mounted alarm beams (single/dual), engine exhaust valve brake (EVB), oil bath air inlet system for dusty conditions, reverse buzzer, and wind deflector to reduce resistance.

3.Powerful Engine Options
Available engines include 380hp, 400hp, and 430hp, compliant with Euro II, III, IV, V, and VI emission standards.

4.Reliable Gearbox / Transmission
SINOTRUK self-developed HW brand gearbox, derived from Fuller design, manual (MT) with 10/12 forward and 2 reverse gears. Synchronizer option available.

5.Cooling System for Hot Regions
For high-temperature markets, a water dripping system is optional to cool brake drums.

6.Heavy-Duty Rear Axle
Double-stage reduction rear axle with multiple differential ratios, suitable for complex and mixed road conditions.

7.Driving & Color Options
Right-hand drive and left-hand drive are both available. Multiple color options offered.

8.Hydraulic Tipping System
Choice of front-mounted vertical lifting mechanism or middle lifting mechanism. HYVA brand optional.

9.Customizable Cargo Body
Cargo body can be customized: side wall thickness adjustable, reinforced options, anti-abrasive steel, high-tensile steel, HARDOX, or manganese steel available.

10.Durable Tyres
Mining-purpose tyres available. Most models are equipped with China’s famous TRIANGLE brand tyres.
