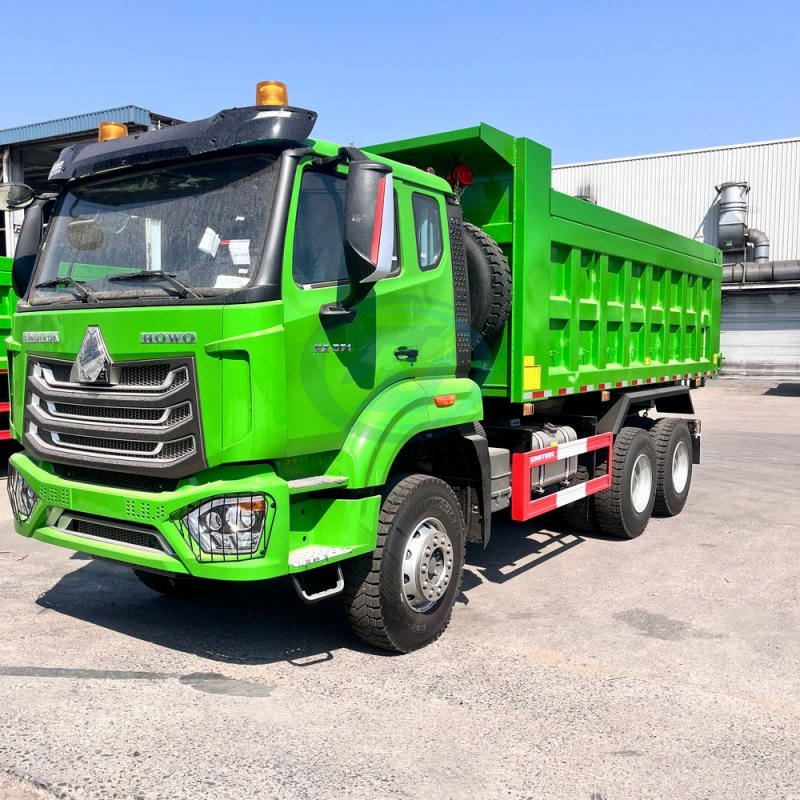

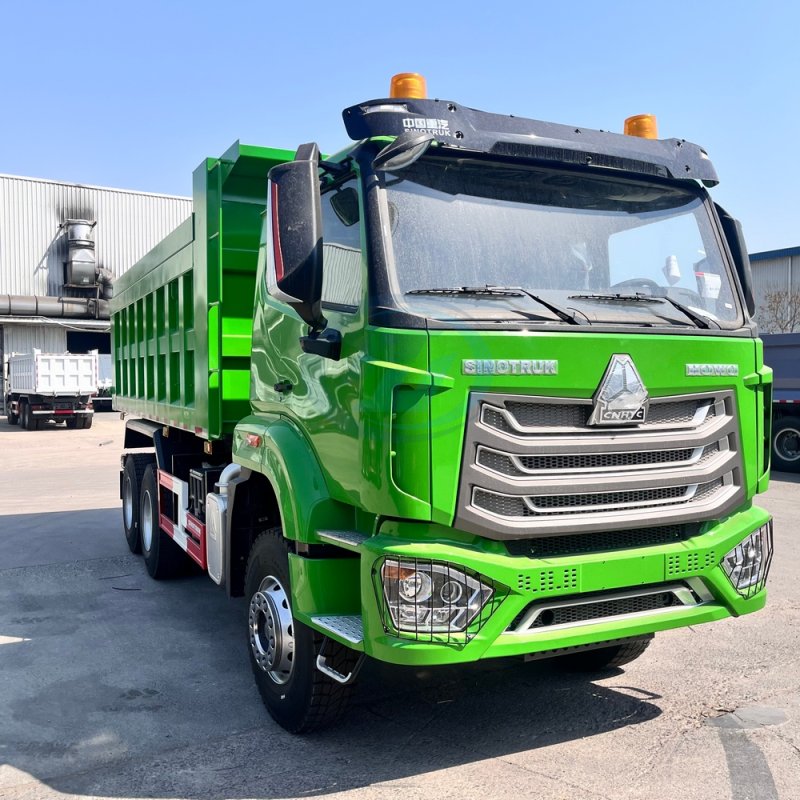

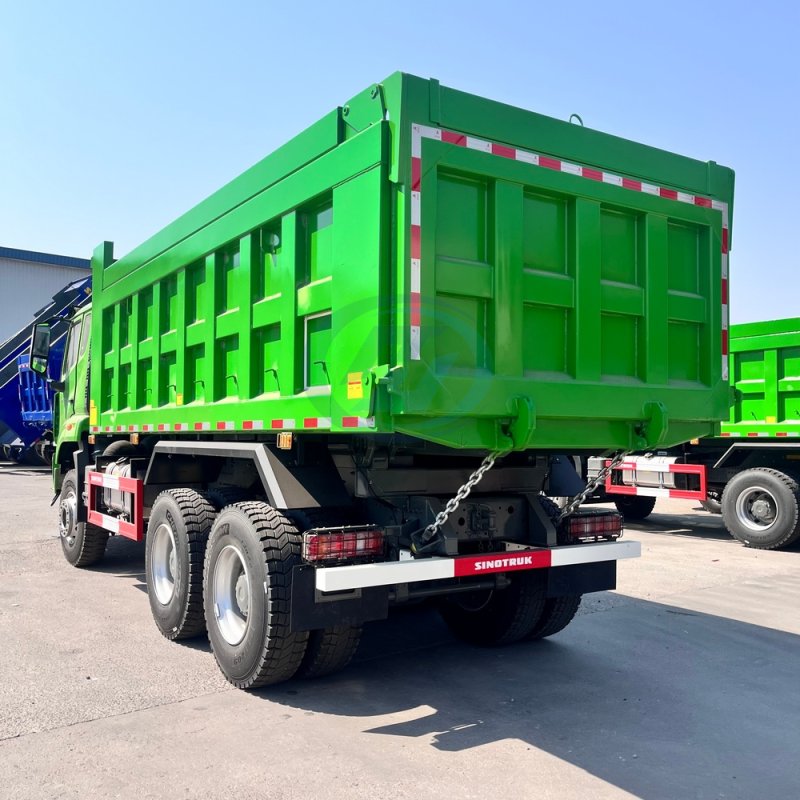

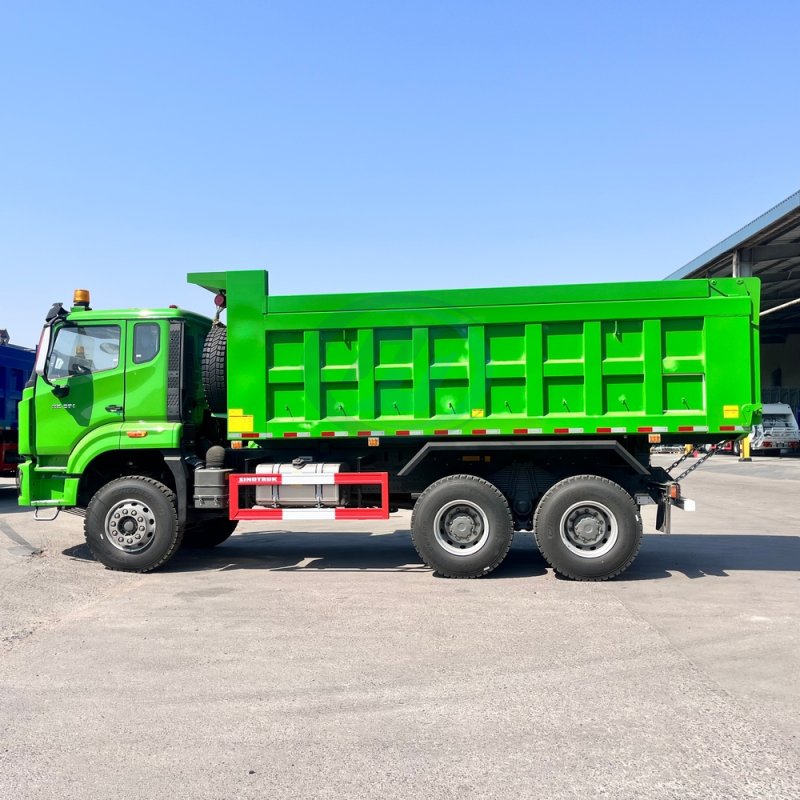

SINOTRUK HOWO NX 371HP 420HP TIPPER DUMPER DUMP TRUCK

Product Details

For the transportation of construction debris and minerals, the SINOTRUK HOWO NX 6X4 10-wheel tri-axle diesel dump truck is extensively utilized. It features a robust structure, excellent load-bearing capacity, and low fuel consumption, leading to its widespread popularity in Africa, Central Asia, Southeast Asia, and South America. The cargo box has a volume covering 15CBM to 25CBM, and it can handle a maximum load of 40 tons. Custom modifications to the cargo box's dimensions and steel plate thickness are provided based on your needs.

Inquiry now Join Inquiry Car

PRODUCT DETAILS

Specification：

SINOTRUK HOWO NX 6X4 DUMPER TRUCK
Model	ZZ3257V464JB1R
Cabin	H77L, long cabin, single sleeper, with air conditioner
Engine	WD615.47(371HP),Euro II Emission standard， SINOTRUK classic engine Option：WP10.400E201 （400hp）
Transmission	HW19710, manual, 10 F & 2 R
Front axle	9500kg loading capacity
Rear axle	16000kg loading capacity
Steering	Bosch brand, with Hydraulic assistance (Right hand driving for option)
Tire	315/80R22.5, 7 pcs (including one spare tire) Option:12.00R20,13.00R22.5
Fuel tank	300L
Cargo box	680023001500mm, floor 8mm side plate 6mm, front hydraulic lifting system. Rectangular reinforced form cargo box
Overall dimension	1050025503500 mm
Color	Option

Product Features

1. All dump trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.

2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.

3. Classic engine: 300hp, 336hp,380hp,371 and 400hp for option ; with Euro II, III, IV, V, VI emission standard;

4:Gearbox/Transmission: SINOTRUK self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 10/12 forwards and 2 reverses, synchronizer is optional as well.

5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.

6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.

7. Right Hand Drive Left Hand Drive Colors are optional.

8. Tipping hydraulic system: front posed vertical lifting mechanism and middle lifting mechanism. HYVA brand is optional.

9. Tipping Cargo Body: Customized according to different purposes, thickness of side walls can be thickened and thinned, reinforced; anti-abrasive material steel,T700 ,H850 and NM450 high tensile steel, HARDOX, manganese steel.

10. Tyres: Mining purpose tyres can be equipped. China famous tire brand, TRIANGE, is mostly used.
