SINOTRUK HOWO 6X4 6X6 ALL WHEEL 336HP DUMP TRUCK

Dump Truck

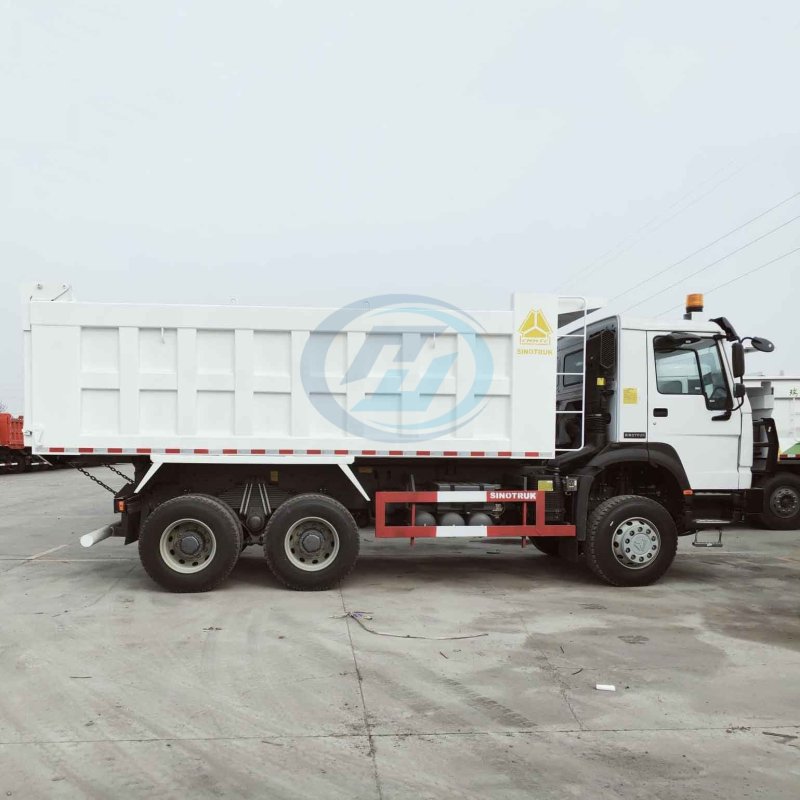

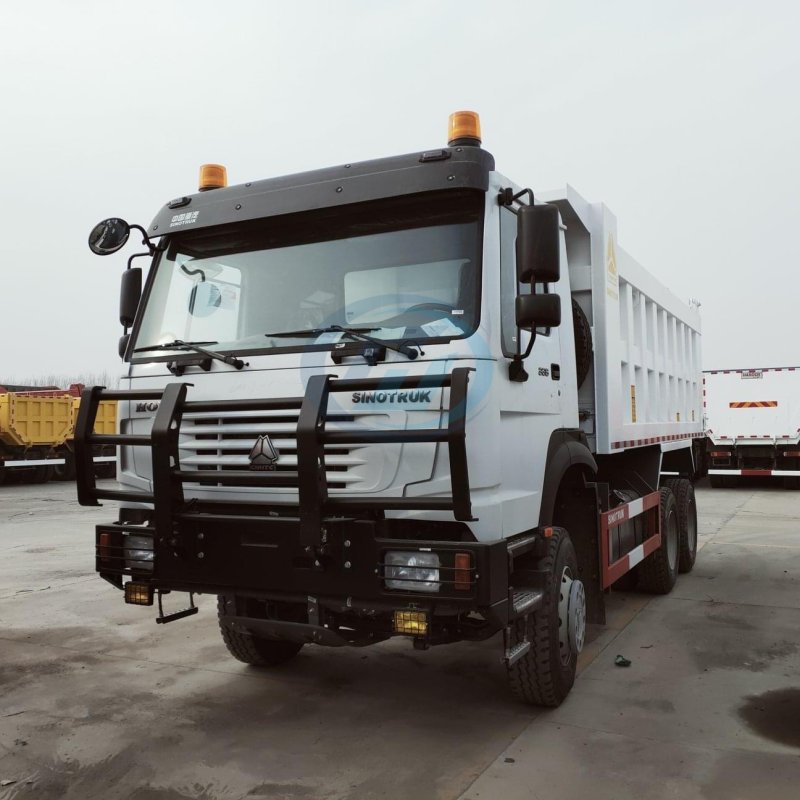

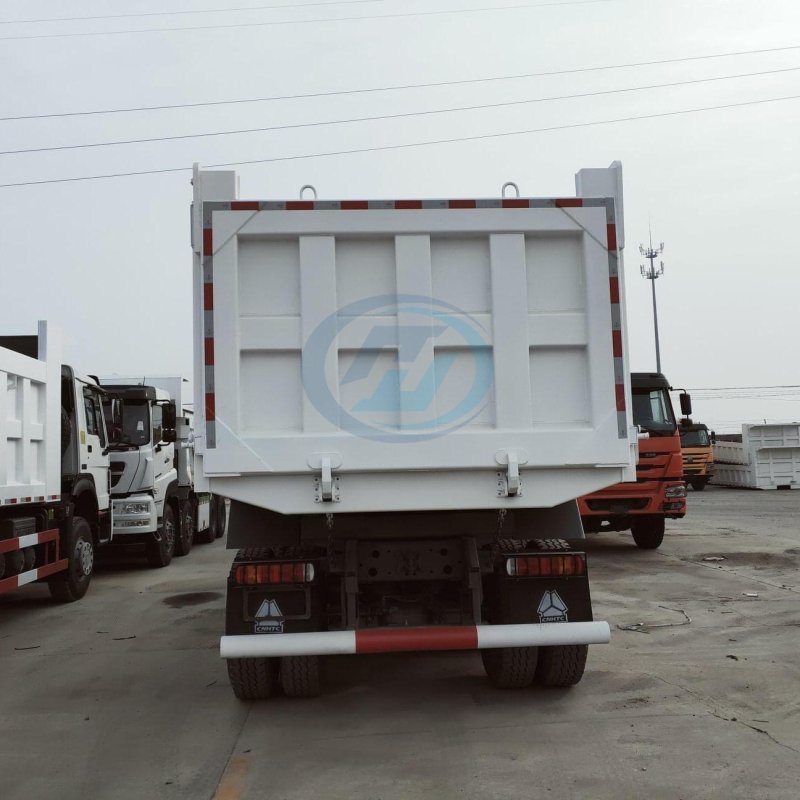

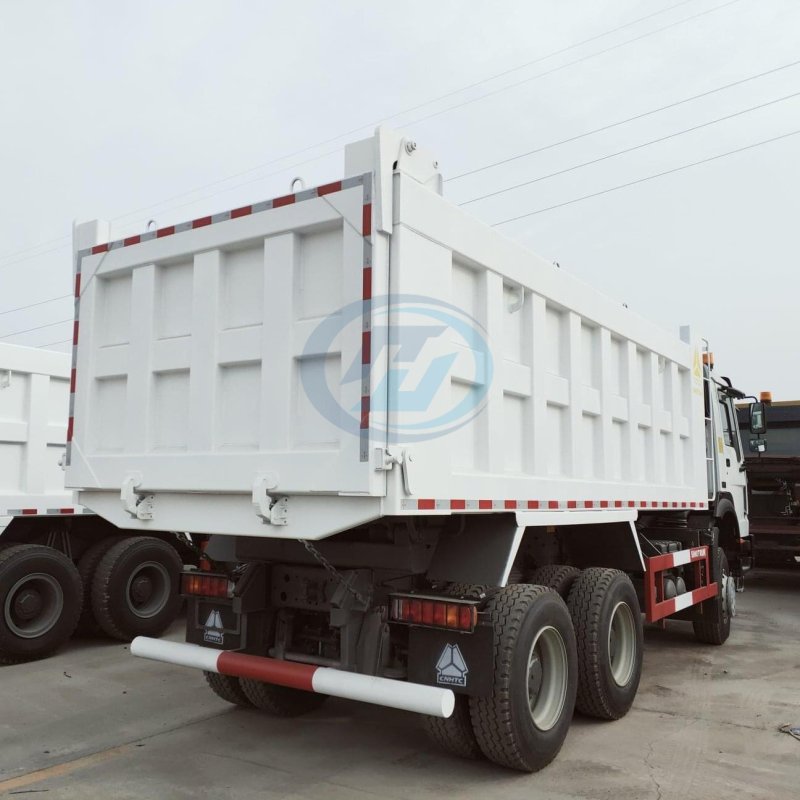

SINOTRUK HOWO 6X6 ALL WHEEL 336HP DUMP TRUCK

Product Details

Widely used in hauling construction waste and ores, the SINOTRUK HOWO 6X6 10-wheel tri-axle diesel AWD dump truck is renowned for its durable structure, strong load-bearing capacity, and economical fuel usage. It is extensively employed in regions including Africa, Central Asia, Southeast Asia, and South America. The volume of its cargo box spans 15CBM to 25CBM, with a maximum load capacity of 40 tons. Custom adjustments to the cargo box's dimensions and steel plate thickness are provided based on customer demands.

Inquiry now Join Inquiry Car

PRODUCT DETAILS

Specification：

SINOTRUK HOWO 6X6 DUMP TRUCK
Model	ZZ3257N4357A1
Cabin	HW76, long cabin, single sleeper, with air conditioner
Engine	WD615.47, 371HP, Euro II Emission standard Option：WD615.47(371HP),WP10.380E22(380HP)
Transmission	HW19710, manual, 10 F & 2 R
Front axle	7000kg loading capacity
Rear axle	2*16000kg loading capacity
Steering	Bosch brand, with Hydraulic assistance
Tire	14.00R20, 11 pcs (including one spare tire) Option:12.00R20,13R22.5
Fuel tank	300L/400L
Cargo box	630023001500mm, floor 8mm side plate 6mm, HYVA Front lifting hydraulic system
Overall dimension	1050025503700 mm
Color	Option

Product Features

1. All dump trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.

2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.

3. Classic engine: WD615.47 (371hp) for option ; with Euro ll, Ill, IV, V, VI emision standard;

4:Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 10/12 forwards and 2 reverses, synchronizer is optional as well.

5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.

6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.

7. Right Hand Drive Left Hand Drive Colors are optional.

8. Tipping hydraulic system: front posed vertical lifting mechanism and middle lifting mechanism. HYVA brand is optional.

9. Tipping Cargo Body: Customized according to different purposes, thickness of side walls can be thickened and thinned, reinforced; anti-abrasive material steel, high tensile steel, HARDOX, manganese steel.

10. Tyres: Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used.
