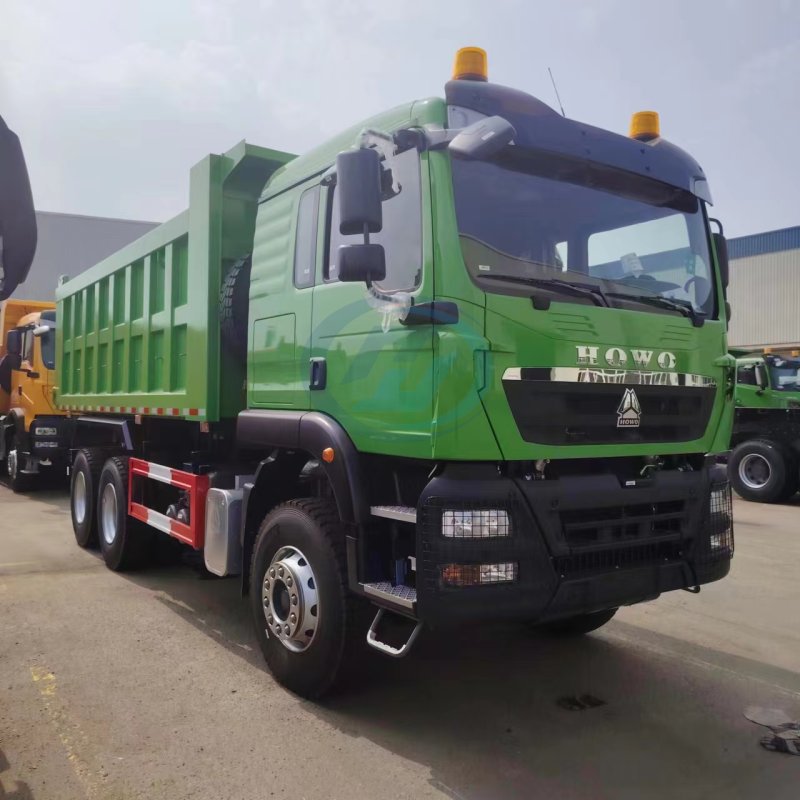

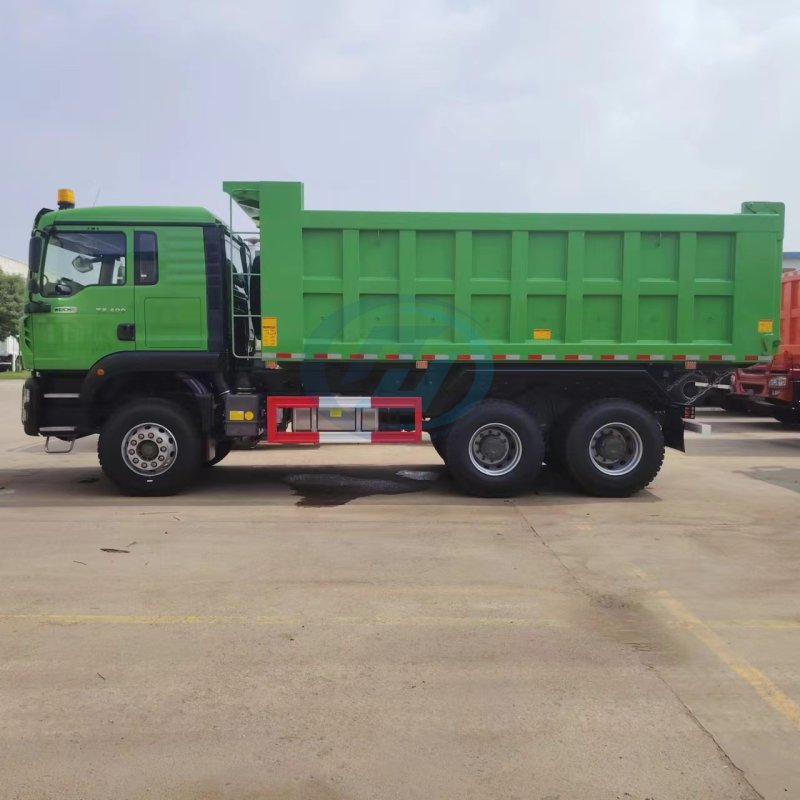

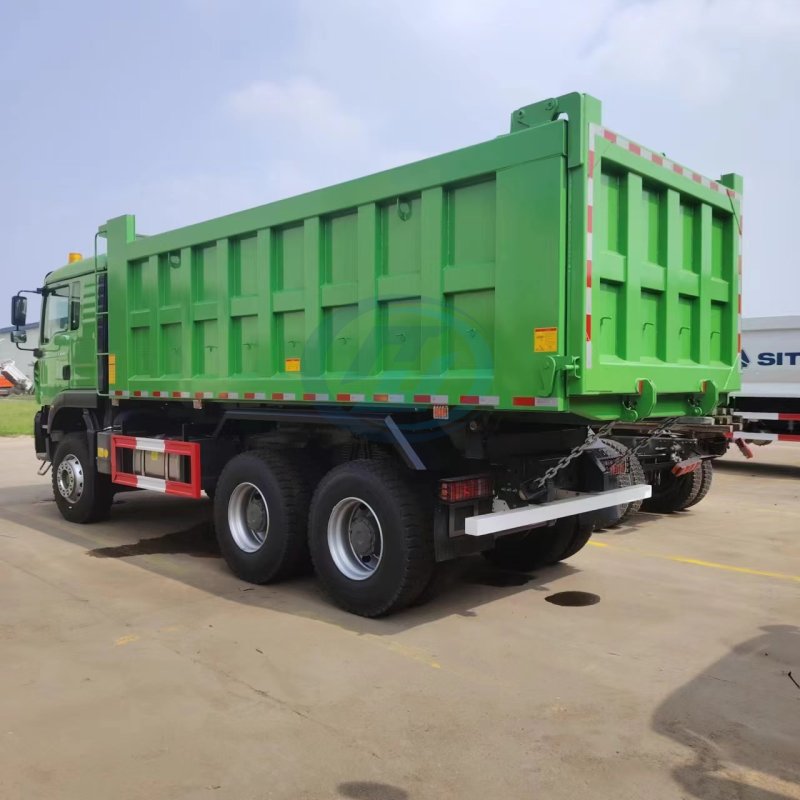

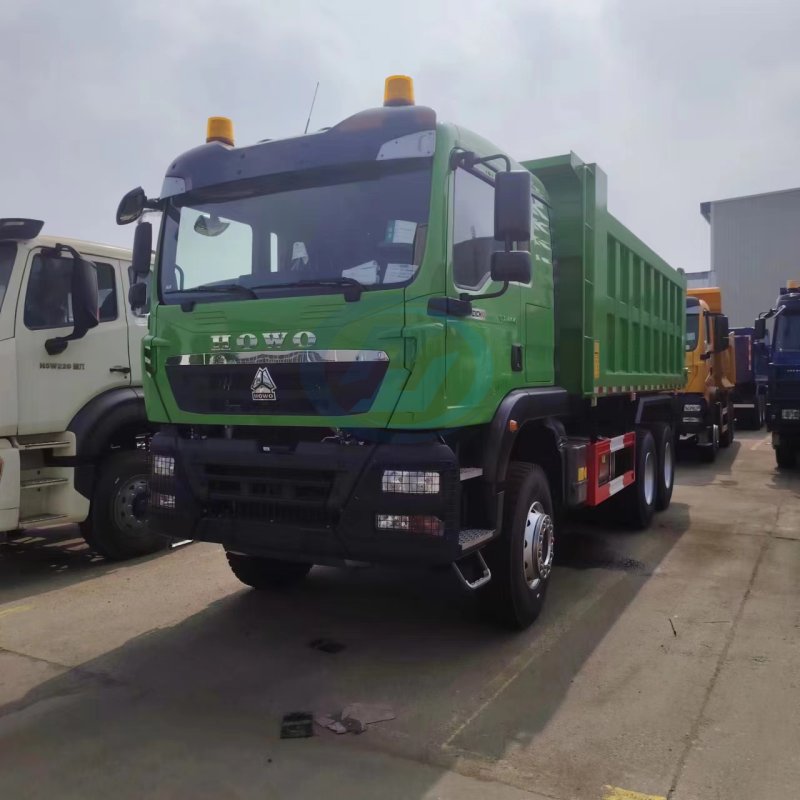

SINOTRUK HOWO TX 6X4 10-wheel tri-axle diesel dump trucks are extensively applied in hauling construction waste and ores. With their robust build, excellent load-bearing capability, and efficient fuel consumption, they have been widely adopted in Africa, Central Asia, Southeast Asia, and South America. The cargo box volume of these trucks covers 15CBM to 25CBM, and their maximum load-bearing capacity can reach 40 tons. We also offer personalized customization for the cargo box's dimensions and steel plate thickness according to your specific requirements.
Specification:
SINOTRUK HOWO TX 6X4 Right Hand Driving Dump TRUCK | |
Model | ZZ3257V434GB1R |
Cabin | TX-F, long cabin, with air conditioner。Right hand driving |
Engine | WP12S400E201, 400HP, Euro II Emission standard Option: WP12.430E201(430HP) |
Transmission | HW19710, manual, 10 F & 2 R |
Front axle | 9500kg loading capacity |
Rear axle | 2*16000kg loading capacity |
Steering | Bosch brand, with Hydraulic assistance |
Tire | 315/80R22.5, 11 pcs (including one spare tire) Option:12.00R20,13R22.5 |
Fuel tank | 300L/400L |
Cargo box | 6300*2300*1500mm, floor 8mm side plate 6mm, Hyva Front hydraulic lifting system . |
Overall dimension | 10500*2550*3500 mm |
Color | Option |
Product Features
1. All dump trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.
2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.
3. Classic engine: 380hp, 400hp and 430hp for option ; with Euro ll, Ill, IV, V, VI emision standard;
4:Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 10/12 forwards and 2 reverses, synchronizer is optional as well.
5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.
6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.
7. Right Hand Drive Left Hand Drive Colors are optional.
8. Tipping hydraulic system: front posed vertical lifting mechanism and middle lifting mechanism. HYVA brand is optional.
9. Tipping Cargo Body: Customized according to different purposes, thickness of side walls can be thickened and thinned, reinforced; anti-abrasive material steel, high tensile steel, HARDOX, manganese steel.
10. Tyres: Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used.
