SINOTRUK HOWO TX 6x4 371HP USED SECOND-HAND DUMP TRUCK

Dump Truck

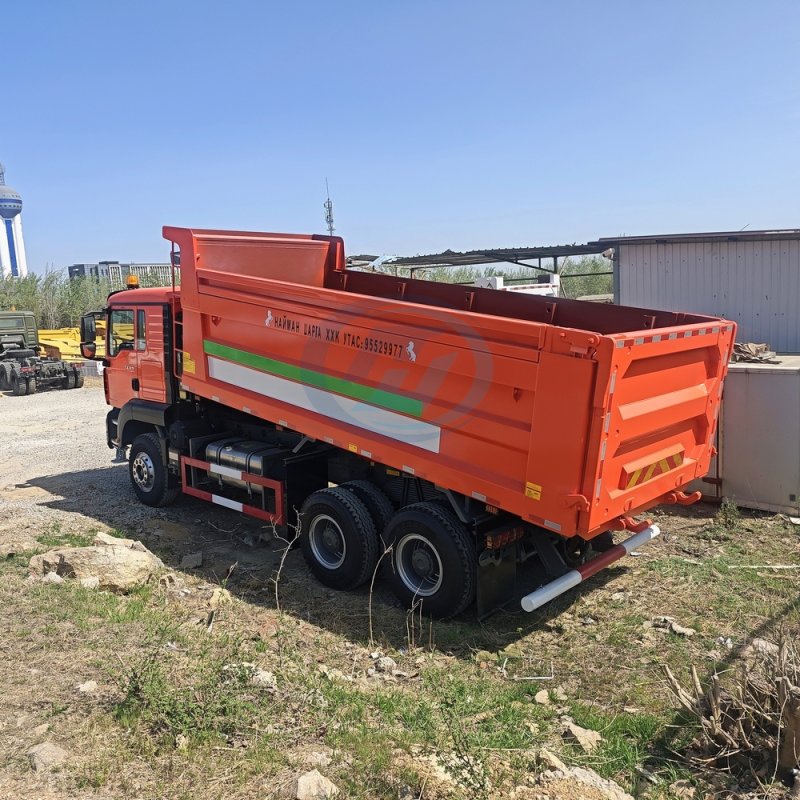

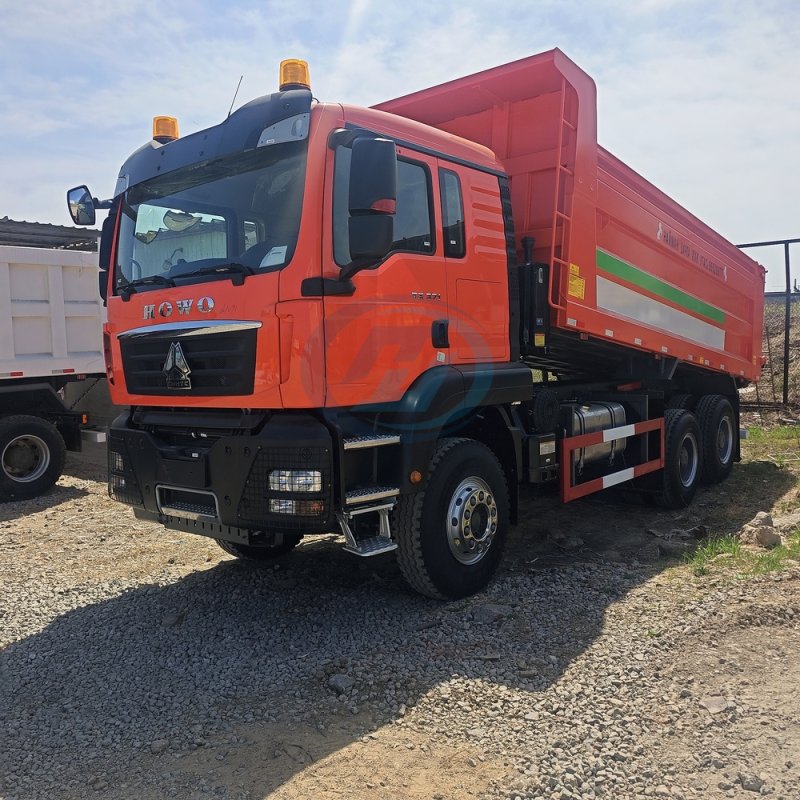

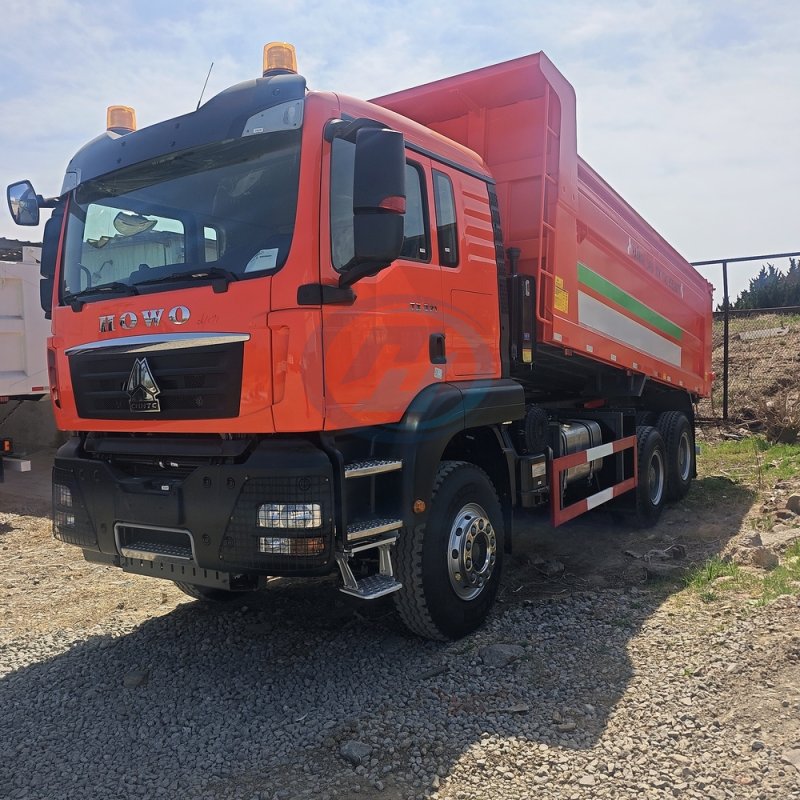

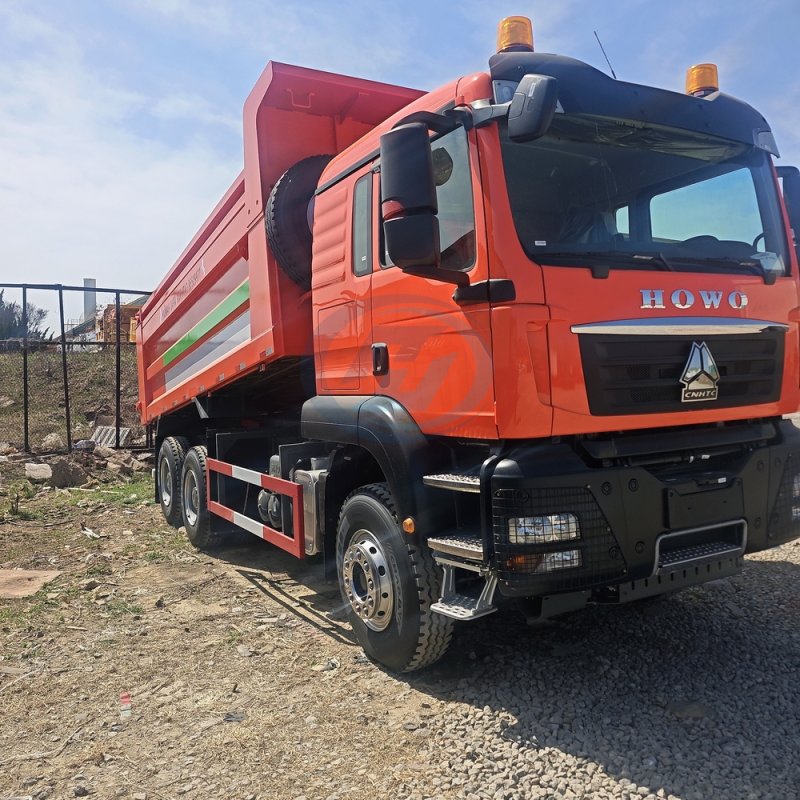

SINOTRUK HOWO TX 6x4 371HP USED SECOND-HAND DUMP TRUCK

Product Details

Widely used in hauling construction waste and ores, the SINOTRUK HOWO TX 6X4 10-wheel tri-axle diesel dump truck is renowned for its durable structure, strong load-bearing capacity, and economical fuel usage. It is extensively employed in regions including Africa, Central Asia, Southeast Asia, and South America. The volume of its cargo box spans 15CBM to 25CBM, with a maximum load capacity of 40 tons. Custom adjustments to the cargo box's dimensions and steel plate thickness are provided based on customer demands.

Inquiry now Join Inquiry Car

PRODUCT DETAILS

Specification：

SINOTRUK HOWO TX 6X4 Heavy Duty Tipping TRUCK
Model	ZZ3257V364GB1
Cabin	TX-F, long cabin, with air conditioner
Engine	WP10.380E22, 380HP, Euro II Emission standard Option：WP10.400E201(400HP), WP12.430E201(430HP)
Transmission	HW19710, manual, 10 F & 2 R
Front axle	9500kg loading capacity
Rear axle	2*16000kg loading capacity
Steering	Bosch brand, with Hydraulic assistance
Tire	315/80R22.5, 11 pcs (including one spare tire) Option:12.00R20,13R22.5
Fuel tank	300L/400L
Cargo box	540023001500mm, floor 8mm side plate 6mm, under body hydraulic lifting system.U shape cargo box with High strength steel plate, for example NM450,T700 and Hardox 450 etc
Overall dimension	845025503500 mm
Color	Option

Product Features

1. All dump trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.

2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.

3. Classic engine: 380hp, 400hp and 430hp for option ; with Euro ll, Ill, IV, V, VI emision standard;

4:Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 10/12 forwards and 2 reverses, synchronizer is optional as well.

5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.

6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.

7. Right Hand Drive Left Hand Drive Colors are optional.

8. Tipping hydraulic system: front posed vertical lifting mechanism and middle lifting mechanism. HYVA brand is optional.

9. Tipping Cargo Body: Customized according to different purposes, thickness of side walls can be thickened and thinned, reinforced; anti-abrasive material steel, high tensile steel, HARDOX, manganese steel.

10. Tyres: Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used.
