SINOTRUK CNHTC HOWO TX 8X4 380HP DUMP TRUCK

Dump Truck

SINOTRUK CNHTC HOWO TX 8X4 380HP DUMP TRUCK

Product Details

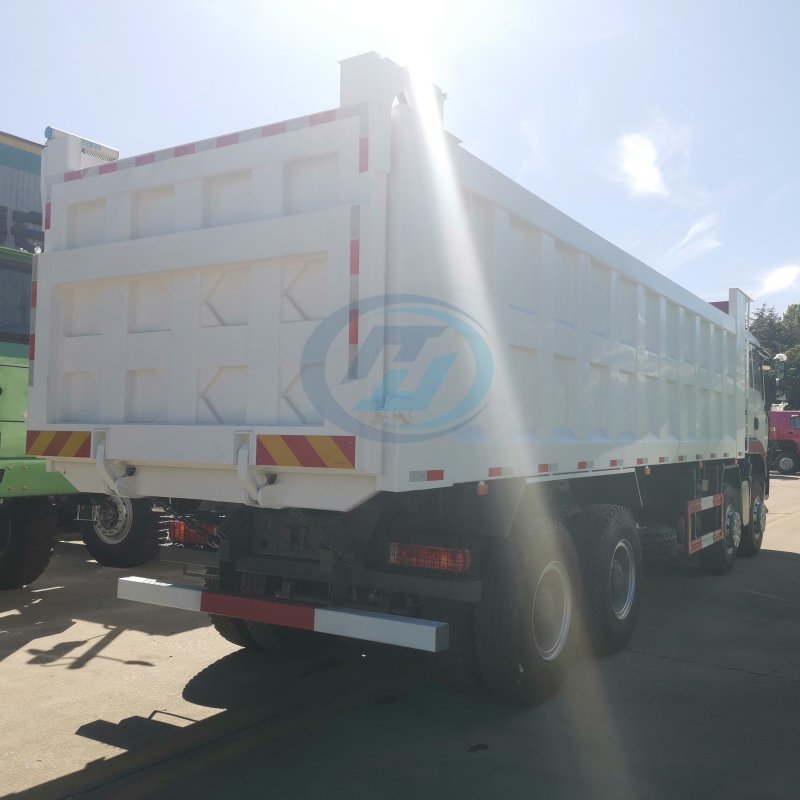

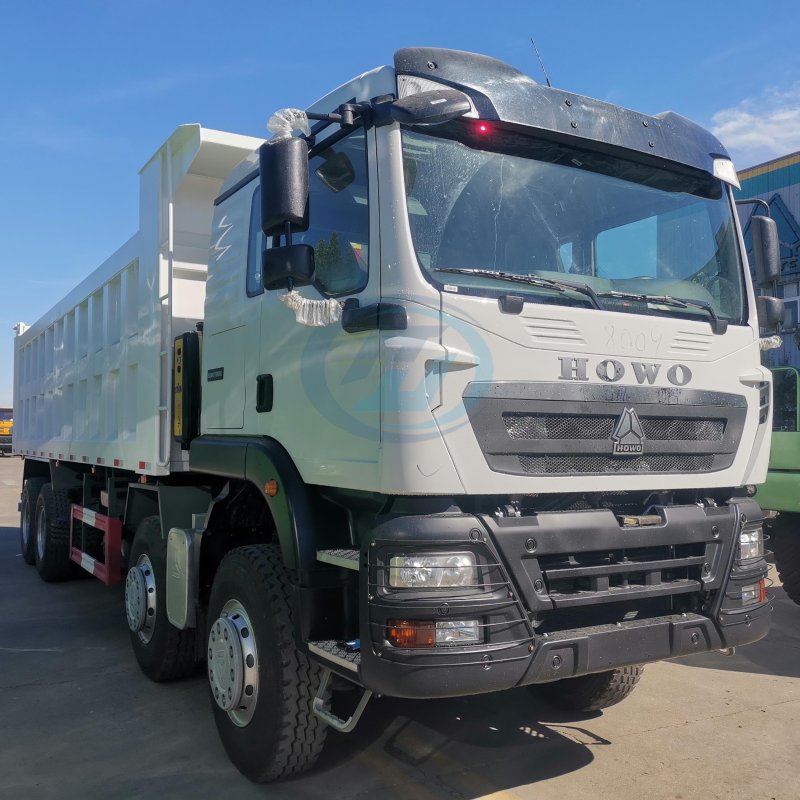

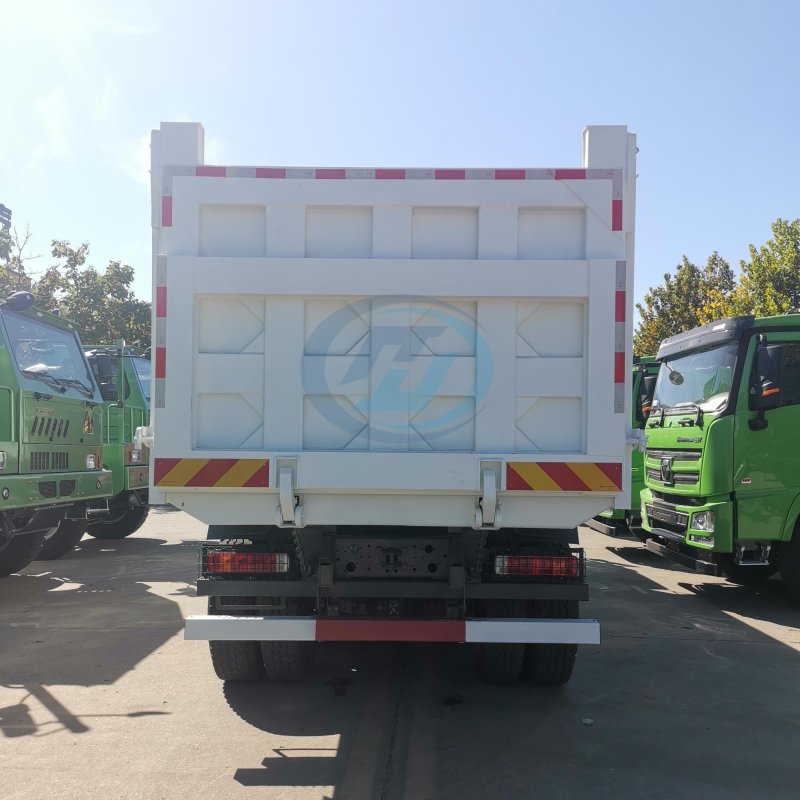

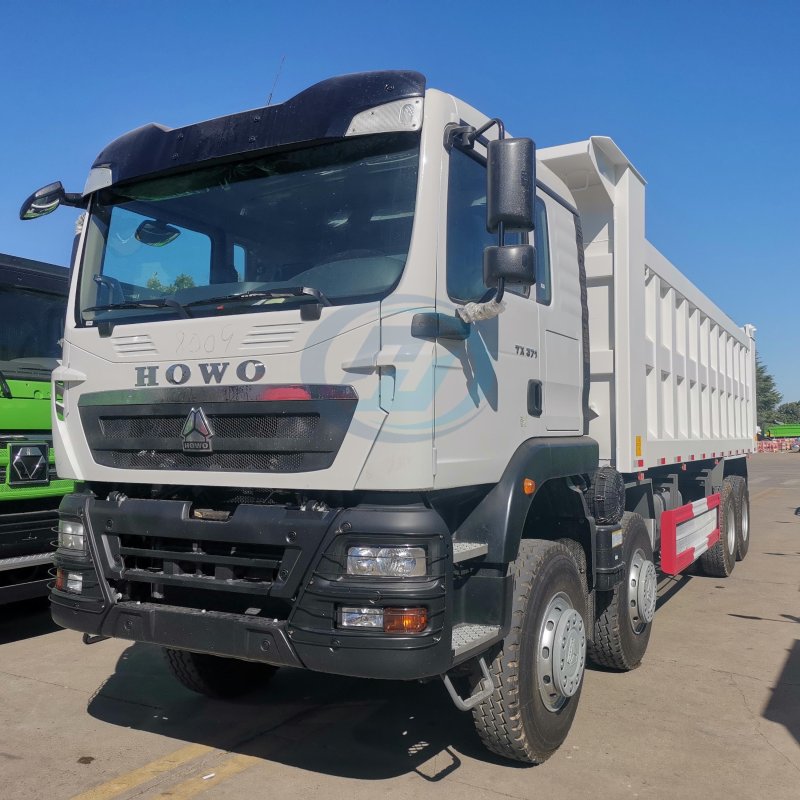

The Sinotruk HOWO TX is the improved model that will replace the HOWO-7. These 8x4, 4-axle, 12-wheel dump trucks are widely used for transporting construction waste and raw materials. Thanks to their robust structure, high loading capacity, and low fuel consumption, they are widely used in Africa, Central Asia, Southeast Asia, and South America. The cargo bed volume ranges from 20 to 35 cubic meters. The maximum loading capacity can be customized according to your needs.

Inquiry now Join Inquiry Car

PRODUCT DETAILS

Specification：

SINOTRUK HOWO TX 8X4 371HP DUMP TRUCK With Frame Structure Cargo Box
Model	ZZ3317V386GB1
Cabin	TX-F, Long Cab, with Air Conditioning
Engine	WP12.400E201, 400 hp, Euro II emissions standard Option: WP12.430E201 (430 hp)
Transmission	HW19710, Manual, 10 F and 2 R
Front axle	2*9500kg loading capacity
Rear axle	2*16000kg loading capacity
Steering	Bosch brand, with hydraulic assistance
Tire	315/80R22.5, 13 pieces (including one spare) Options: 12.00R20, 12R22.5, 13R22.5
Fuel tank	300L/400L
Cargo box	760023001500mm, 8mm floor, 6mm side panel, HYVA front lift hydraulic system
Overall dimension	1080025503600 mm
Color	Option

Product Features

1. All dump trucks are equipped with a high-tensile steel leaf spring suspension system and a double-layer reinforced frame.

2. Multiple options are available, including an air-cooled driver seat for a comfortable driving experience, an engine oil sump and intercooler protection plate, overhead warning lights (single and double), an engine exhaust valve brake (EVB), an oil bath air intake system suitable for dusty operating conditions to protect the engine from inhaling impure air, a reverse button, and a wind deflector to reduce wind resistance.

3. Classic Engines: WD615.47 (371 hp), WP10.380E22 (380 hp), WP12.400E201 (400 hp), WP12.430E201 (430 hp); compliant with Euro 2, 3, 4, 5, and 6 emission standards.

4. Gearbox/Transmission: HW brand, developed by Sinotruk, derived from the Fuller gearbox, manual (MT) operation, 10/12 forward gears and two reverse speeds, and optional synchronizer.

5. In some markets where temperatures are extremely high, a water-drip system is optional for brake drum cooling.

6. Rear Axle: Dual-stage reduction system with a full range of differential ratios, suitable for all complex and mixed road conditions.

7. Right-hand drive, left-hand drive, optional colors.

8. Hydraulic Tilt System: Front vertical lift mechanism and center lift mechanism. HYVA brand optional.

9. Tilt Load Frame: Specially designed for various purposes, sidewall thickness can be increased or decreased, and reinforced with anti-wear materials: steel, high-tensile steel, HARDOX, and manganese steel.

10. Tires: Can be equipped with mining-specific tires. The famous tire brand in China, TRIALANGE, is mainly used.
